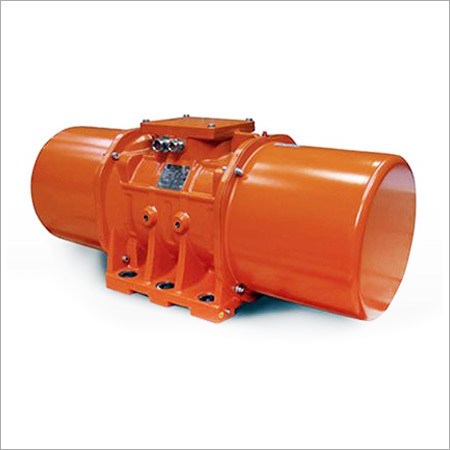

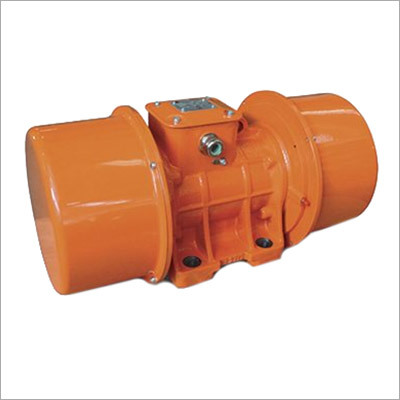

External Electric Motovibrators MVE

Product Details:

Share Your Product:

5000.00 - 50000.00 INR/Set

Get a Price/Quote

Request To Call Back Send Inquiry

External Electric Motovibrators MVE Price And Quantity

Price Range 5000.00 - 50000.00 INR/Set
Minimum Order Quantity 1 Set

External Electric Motovibrators MVE Trade Information

Supply Ability 25 Set Per Week
Delivery Time 7-10 Days
Main Domestic Market All India

Product Description

We hold immense knowledge in manufacturing and supplying a comprehensive assortment of External Electric Motovibrators MVE. This is used on vibrating machines as a flow aids to improve material discharge by performing screening, conveying, sizing, or compacting in a variety of industries. Provides 20 to 26,000 kg of centrifugal force with 2, 4, 6 or 8 poles and suitable for all kinds of vibrating equipment. The offered External Electric Motovibrators MVE comes with single or tree phase.

Wm (kgcm)		Model		Centrifugat force (kg)		Weight (kg)
50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz
3.72	2.61	MVE 200/3E	MVE 200/36E	187	189	7.0
3.72	2.61	MVE 202/3E	MVE 202/36E	187	189	7.2
6.39	4.46	MVE 300/3E	MVE 300/36E	321	323	9.8
7.96	5.68	MVE 400/3E	MVE 400/36E	407	411	10.3
10.27	7.38	MVE 500/3E	MVE 500/36E	530	534	15.8
14.90	10.57	MVE 700/3E	MVE 700/36E	758	765	16.5
15.68	11.06	MVE 800/3E	MVE 800/36E	794	800	20.6
22.41	15.68	MVE 1200/3E	MVE 1200/36E	1005	1013	21.6
20.26	14.00	MVE 1300/3E	MVE 1300/36E	1355	1365	22.0
26.58	18.60	MVE 1301/3E	MVE 1301/36E	1355	1365	34
26.58	18.60	MVE 1310/3E	MVE 1310/36E	1123	1616	34
31.26	22.22	MVE 1600/3E	MVE 1600/36E	1601	1608	51.6	51.2
36.78	27.60	MVE 2000/3E	MVE 2000/36E	2027	1997	52.8	52.0
45.97	31.87	MVE 2300/3E	MVE 2300/36E	2302	2306	53.6	51.6
68.10	43.89	MVE 3200/3E	MVE 3200/36E	3252	3176	103.0	101.4
79.40	55.99	MVE 4000/3E	MVE 4000/36E	4033	4052	107.0	103.8

Input Power (kW)		Nominal Current A max. (Y)		Ia / In		Cable Gland	Class II Div.2	II3D
50Hz	60Hz	50Hz 440V	60Hz 440V	50Hz	60Hz	Metric	Temp. Class	Temp. Class
0.18	0.21	0.35	0.35	3,30	3,30	M20	T4	100°C
0.18	0.21	0.35	0.35	3,30	3,30	M20	T4	100°C
0.27	0.28	0.52	0.45	3.60	3.60	M20	T4	100°C
0.30	0.36	0.58	0.60	3.50	3.50	M20	T4	100°C
0.50	0.58	0.96	0.97	4.00	4.00	M20	T4	100°C
0.66	0.75	1.25	1.24	4.30	4.30	M20	T4	100°C
0.75	0.90	1.45	1.50	3.80	3.80	M20	T4	100°C
0.95	1.15	1.85	1.95	4.40	4.40	M20	T4	100°C
1.30	1.38	2.44	2.25	5.20	5.20	M20	T4	100°C
1.30	1.38	2.44	2.25	5.20	5.20	M20	T4	100°C
1.30	1.38	2.44	2.25	5.20	5.20	M20	T4	100°C
1.57	1.60	2.94	2.61	5.90	5.90	M25	T4	135°C
2.00	2.10	3.75	3.42	6.50	6.50	M25	T4	135°C
2.40	2.45	4.44	3.94	6.00	6.00	M25	T4	135°C
2.90	2.90	5.30	4.61	8.30	8.30	M32	T4	135°C
2.90	2.90	5.30	4.61	8.50	8.50	M32	T4	135°C

Model		Drawing	Size
50 Hz	60 Hz	B	20
MVE 200/3E	MVE 200/36E	B	23
MVE 202/3E	MVE 202/36E	G	30
MVE 300/3E	MVE 300/36E	C	30
MVE 400/3E	MVE 400/36E	C	40
MVE 500/3E	MVE 500/36E	D	40
MVE 700/3E	MVE 700/36E	D	50
MVE 800/3E	MVE 800/36E	D	50
MVE 1200/3E	MVE 1200/36E	D	50
MVE 1300/3E	MVE 1300/36E	D	53
MVE 1301/3E	MVE 1301/36E	D	55
MVE 1310/3E	MVE 1310/36E	D	60
MVE 1600/3E	MVE 1600/36E	D	60
MVE 2000/3E	MVE 2000/36E	D	60
MVE 2300/3E	MVE 2300/36E	D	75
MVE 3200/3E	MVE 3200/36E	D	75
